CKS Audit logging via kube-api server
How to configure Kubernetes audit logging via the kube-apiserver, including audit policy examples and volume mount setup.

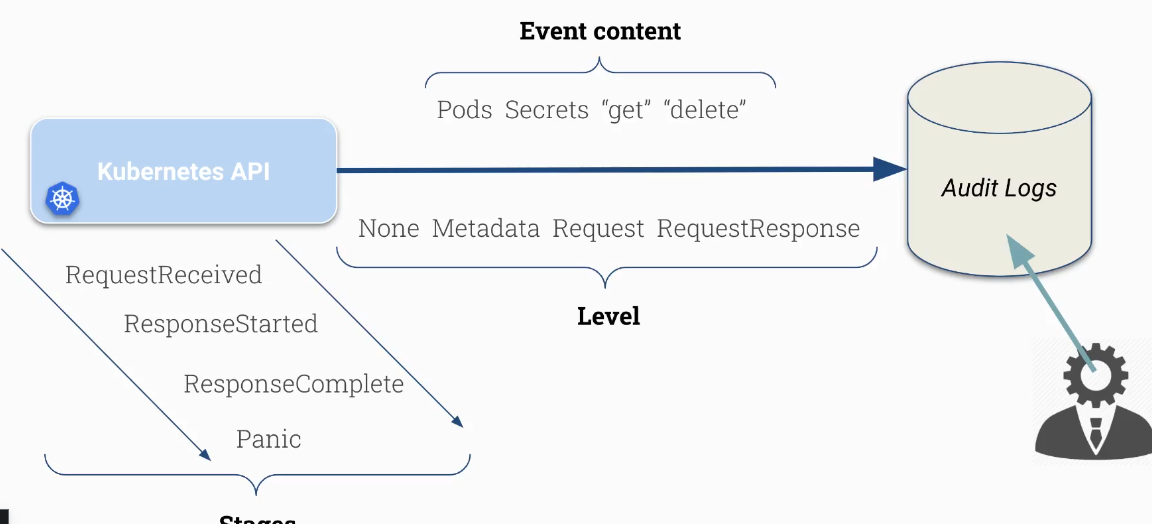

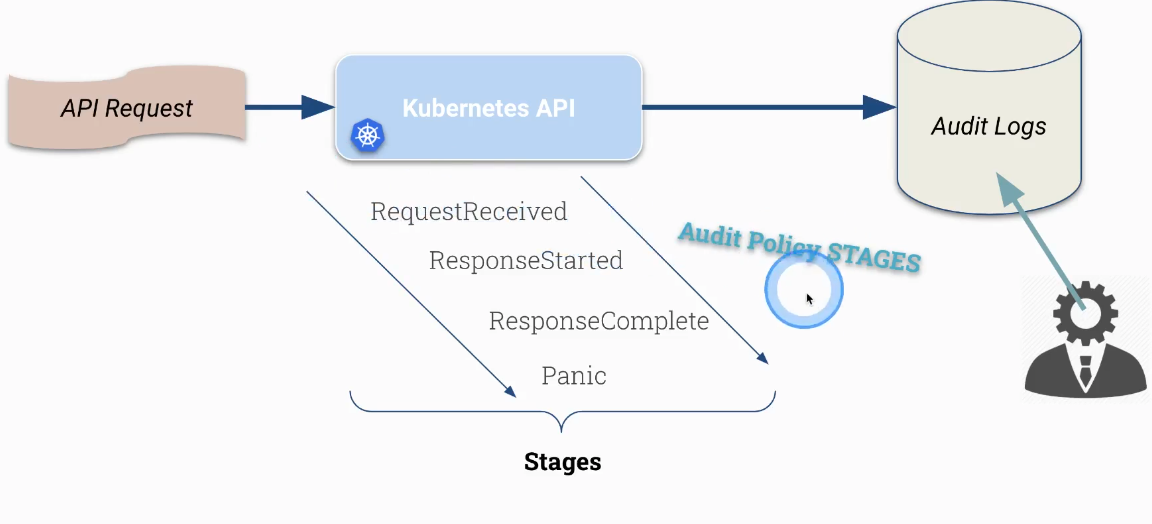

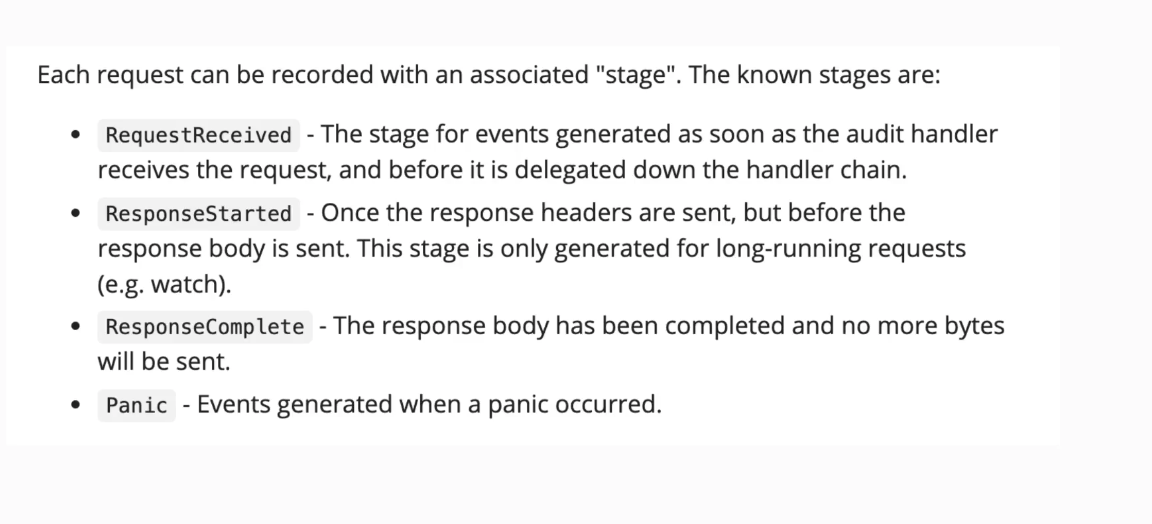

Important Kubernetes request stages

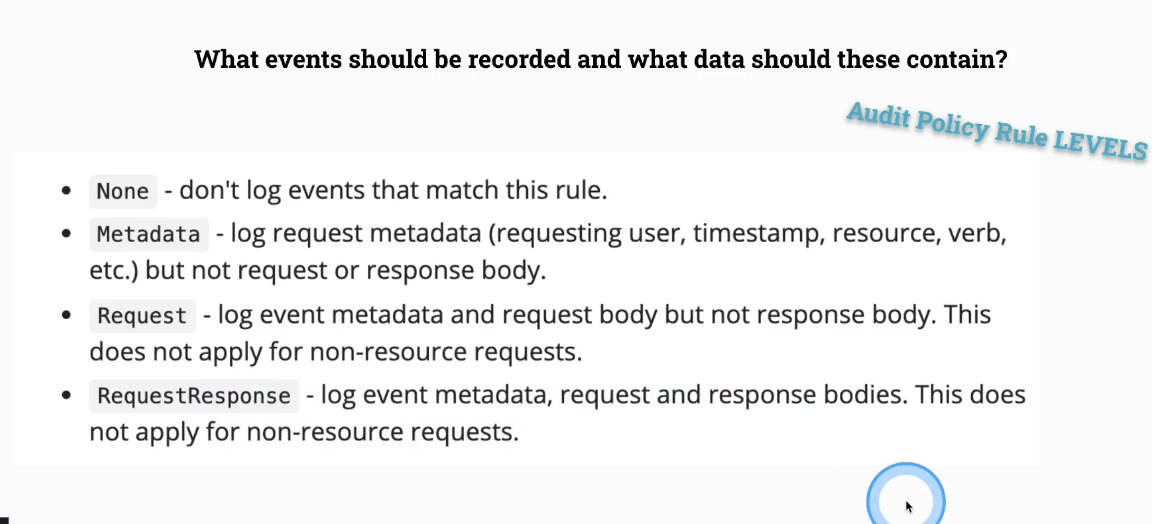

What events should be recorded

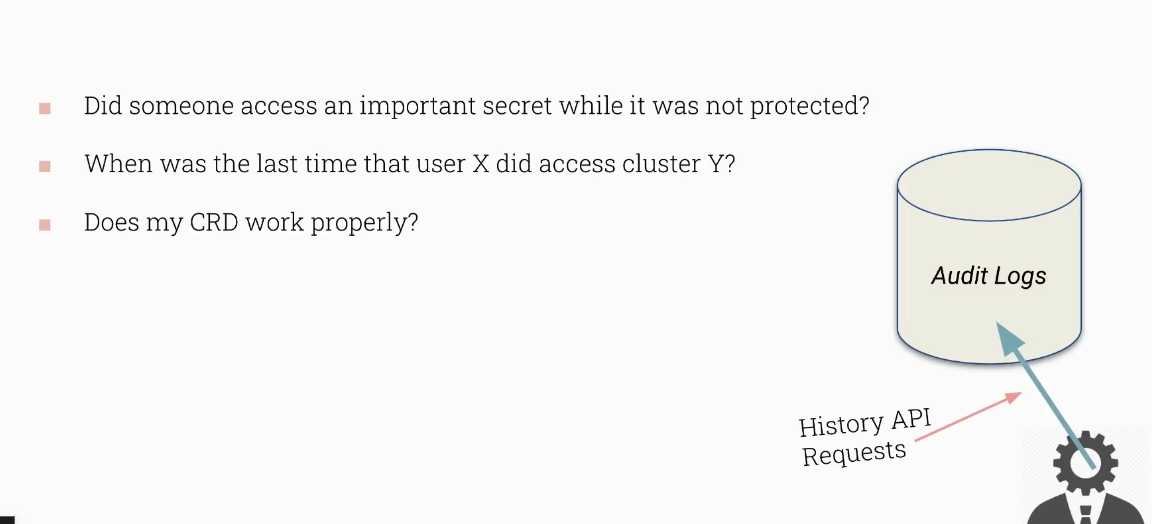

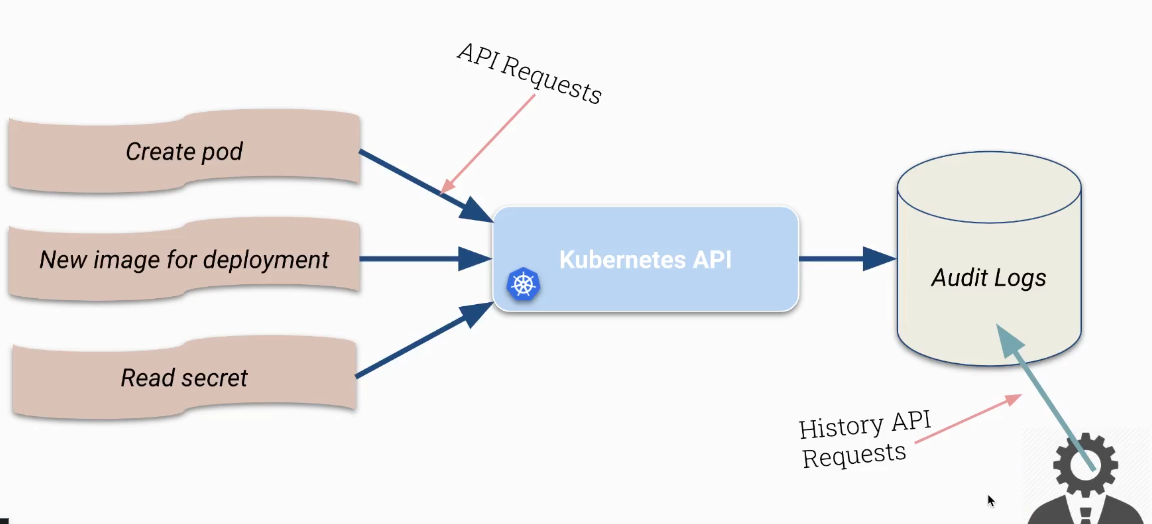

Audit log from Mushad course
An example of Audit Policy object
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
apiVersion: audit.k8s.io/v1 # This is required.
kind: Policy
# Don't generate audit events for all requests in RequestReceived stage.
omitStages:
- "RequestReceived"
rules:
# Log pod changes at RequestResponse level
- level: Metadata
namespace: ["prod"]
verb: ["delete"]
resources:
- group: ""
# Resource "pods" doesn't match requests to any subresource of pods,
# which is consistent with the RBAC policy.
resources: ["secrets"]
# Log "pods/log", "pods/status" at Metadata level
Kube-apiserver configuration
Now, we need to create an extra folder for auditing.
1
mkdir -p /var/log/kubernetes/audit
Create Policy file within this folder
1
2
3
4
apiVersion: audit.k8s.io/v1 # This is required.
kind: Policy
rules:
- level: Metadata
Policy file: /etc/kubernetes/audit/policy.yaml
1
2
3
4
5
cat /etc/kubernetes/audit/policy.yaml
apiVersion: audit.k8s.io/v1
kind: Policy
rules:
- level: Metadata

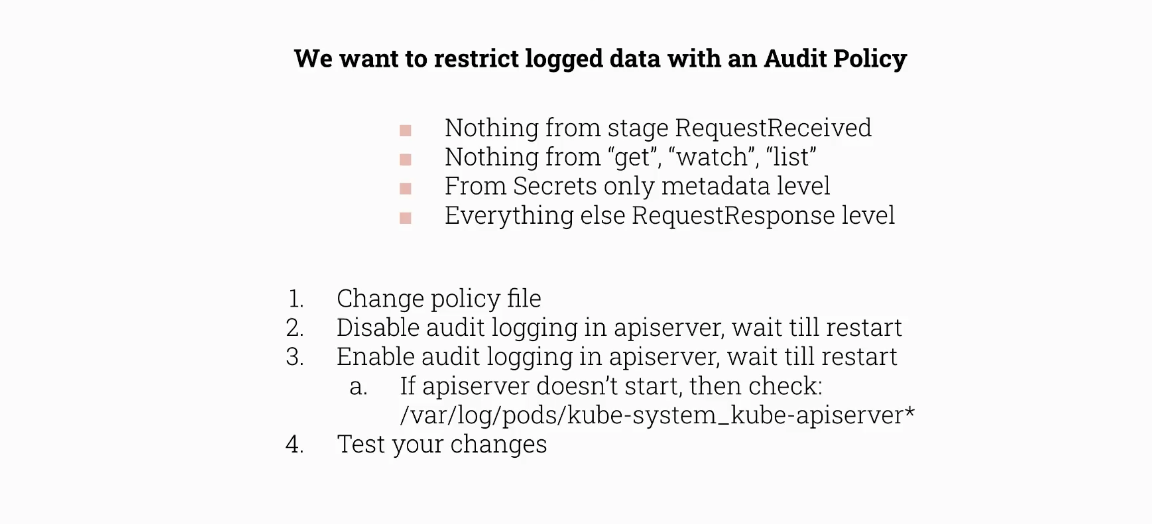

Advanced Policy file: /etc/kubernetes/audit/policy.yaml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
cat /etc/kubernetes/audit/policy.yaml
apiVersion: audit.k8s.io/v1 # This is required.
kind: Policy
# Don't generate audit events for all requests in RequestReceived stage.
# 1. Nothing from stage RequestReceived
omitStages:
- "RequestReceived"
rules:
- level: None
# 2. Nothing from "watch", "list", "get"
verbs: ["watch", "list", "get"]
- level: Metadata
resources:
# 3. From Secrets only metadata level
- group: "" # core API group
resources: ["secrets"]
# 4. log everything related to "RequestResponse"
- level: RequestResponse
Kube-api server file: /etc/kubernetes/manifests/kube-apiserver.yaml
https://kubernetes.io/docs/tasks/debug/debug-cluster/audit/#log-backend
Log backend The log backend writes audit events to a file in JSONlines format. You can configure the log audit backend using the following kube-apiserver flags:
1
2
3
4
--audit-log-path specifies the log file path that log backend uses to write audit events. Not specifying this flag disables log backend. - means standard out
--audit-log-maxage defined the maximum number of days to retain old audit log files
--audit-log-maxbackup defines the maximum number of audit log files to retain
--audit-log-maxsize defines the maximum size in megabytes of the audit log file before it gets rotated
If your cluster’s control plane runs the kube-apiserver as a Pod, remember to mount the hostPath to the location of the policy file and log file, so that audit records are persisted. For example:
1
2
--audit-policy-file=/etc/kubernetes/audit-policy.yaml \
--audit-log-path=/var/log/kubernetes/audit/audit.log
then mount the volumes:
1
2
3
4
5
6
7
8
...
volumeMounts:
- mountPath: /etc/kubernetes/audit-policy.yaml
name: audit
readOnly: true
- mountPath: /var/log/kubernetes/audit/
name: audit-log
readOnly: false
and finally configure the hostPath:
1
2
3
4
5
6
7
8
9
10
11
...
volumes:
- name: audit
hostPath:
path: /etc/kubernetes/audit-policy.yaml
type: File
- name: audit-log
hostPath:
path: /var/log/kubernetes/audit/
type: DirectoryOrCreate
Solution:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
root@scw-k8s-cmdx:~# cat /etc/kubernetes/audit-policy.yaml
apiVersion: audit.k8s.io/v1
kind: Policy
omitStages:
- "RequestReceived"
rules:
- level: RequestResponse
- level: None
verbs: ["watch","get","list"]
- level: Metadata
resources:
- group: "" # core API group
resources: ["secrets"]

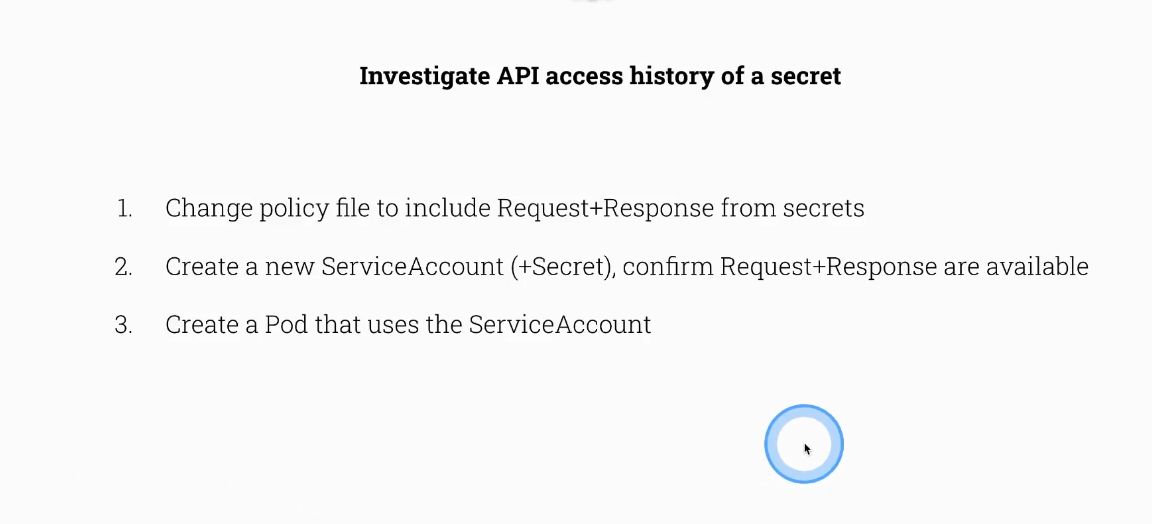

Here is a more advanced audit policy that filters out events from specific system components, node groups, and common read-only verbs, while capturing request/response details for secret operations.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
root@scw-k8s-cmdx:~# cat /etc/kubernetes/audit-policy.yaml
apiVersion: audit.k8s.io/v1
kind: Policy
omitStages:
- "RequestReceived"
rules:
# log nothing regarding events
- level: None
resources:
- group: "" # core
resources: ["events"]
# log nothing coming from some components
- level: None
users:
- "system:kube-scheduler"
- "system:kube-proxy"
- "system:apiserver"
- "system:kube-controller-manager"
- "system:serviceaccount:gatekeeper-system:gatekeeper-admin"
# log nothing coming from some groups
- level: None
userGroups: ["system:nodes"]
- level: None
verbs: ["watch","get","list"]
- level: RequestResponse
resources:
- group: "" # core API group
resources: ["secrets"]
- level: RequestResponse
