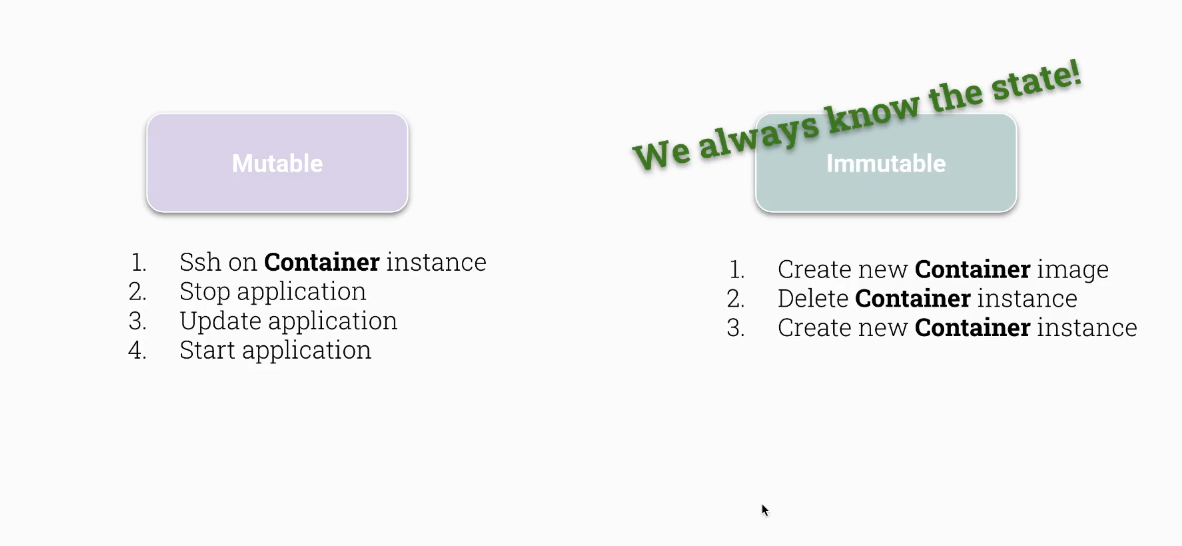

CKS Immutability of containers at runtime

• advanced deployment methods
• easy rollback
• more reliability
• better security (on container level)

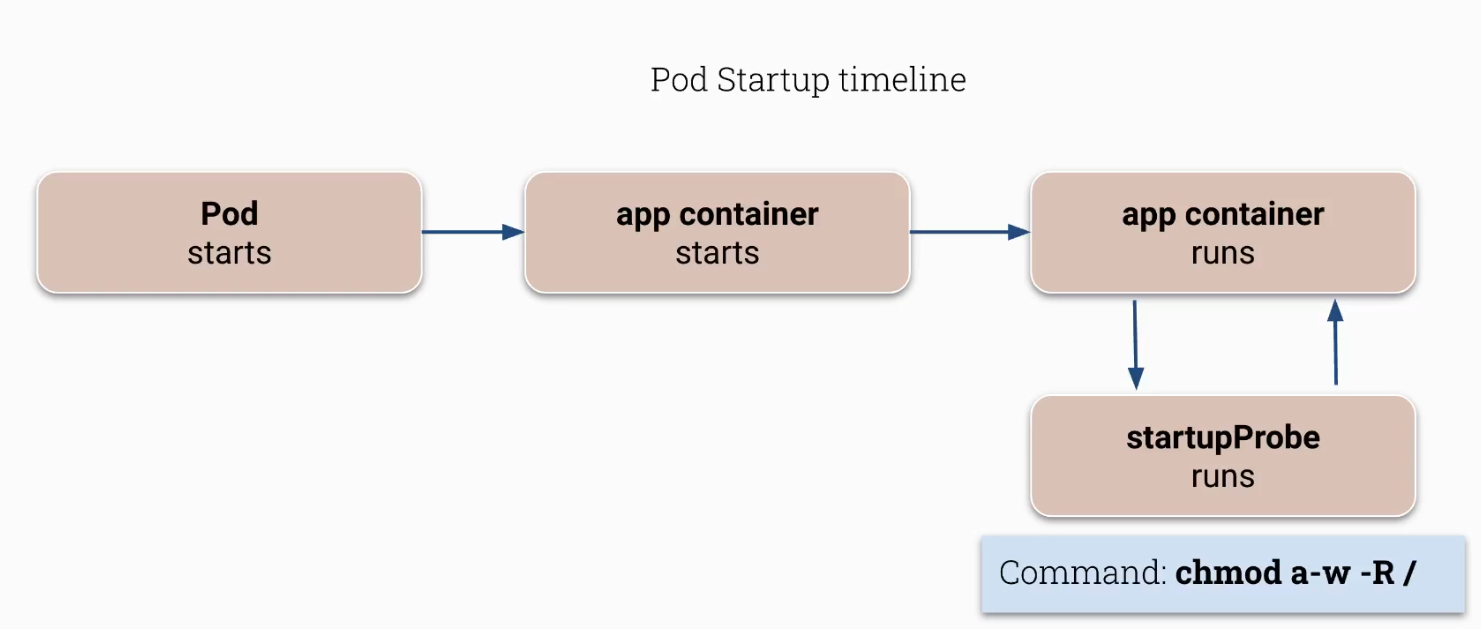

Interesting example of how startupProbe can be used to make a container a bit more secure

root@cks-master:~# cat immutable.yaml
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: immutable
  name: immutable
spec:
  containers:
  - image: httpd
    name: immutable
    resources: {}
    startupProbe:
      exec:
        command:
        - rm
        - /bin/bash
      initialDelaySeconds: 1
      periodSeconds: 5
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}

ReadOnlyRootFilesystem example

cat immutable.yaml
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: immutable
  name: immutable
spec:
  containers:
  - image: httpd
    name: immutable
    securityContext:
      readOnlyRootFilesystem: true
    volumeMounts:
    - name: pid
      mountPath: "/usr/local/apache2/logs/"
  volumes:
  - name: pid
    emptyDir: {}
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}

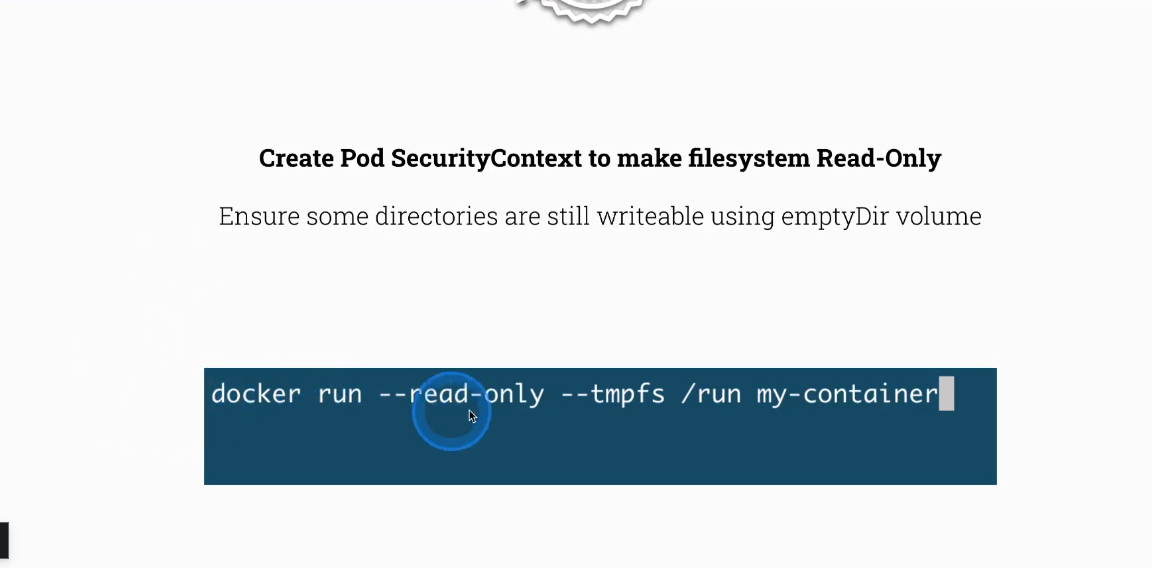

If you come from Docker world

Task

Generate a pod recipe with a read-only root filesystem. This command creates a dry-run YAML manifest for a busybox pod that sleeps for one day.

k run pod-ro -n sun --image=busybox:1.32.0 --dry-run=client -oyaml --command  -- sh -c 'sleep 1d' > pod.yaml

Then add the readOnlyRootFilesystem security context to the generated manifest.

controlplane $ cat pod.yaml
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null
  labels:
    run: pod-ro
  name: pod-ro
  namespace: sun
spec:
  containers:
  - command:
    - sh
    - -c
    - sleep 1d
    image: busybox:1.32.0
    name: pod-ro
    resources: {}
    securityContext:
      readOnlyRootFilesystem: true
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}
